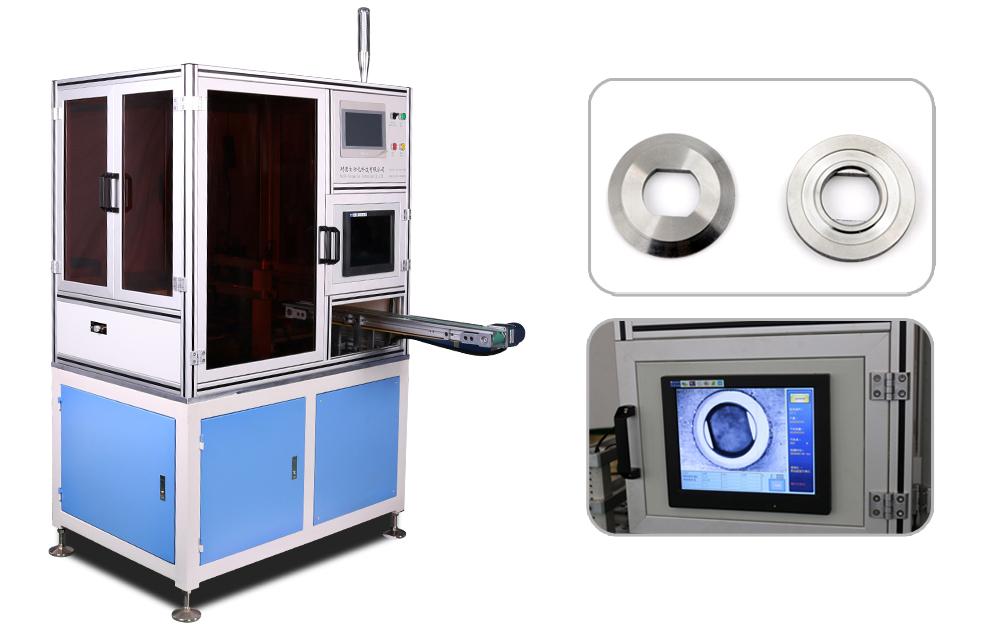

Power tool fitting appearance+ size automatic inspection machine

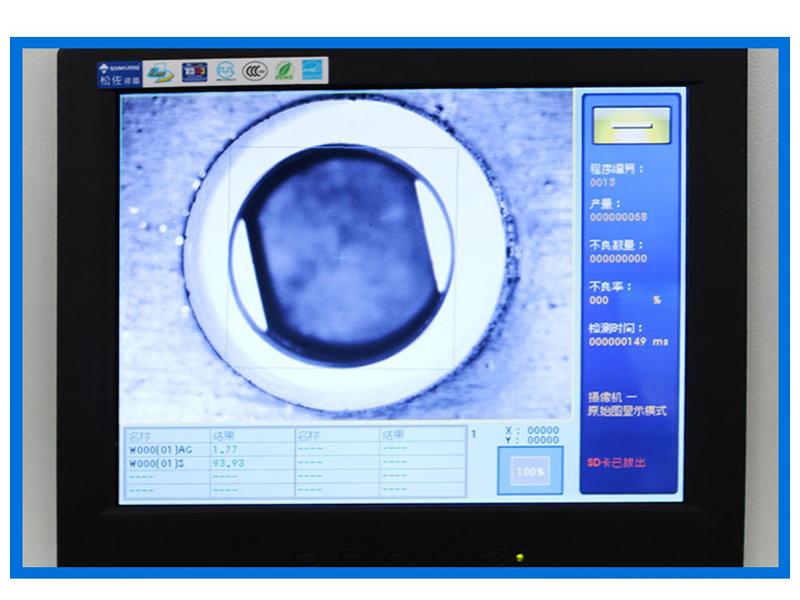

Automated Vision Test and Measurement
- Inner Diameter
- Outer Diameter
- Height
- Shape
Measurement Accuracy
- Measurement Resolution: 0.1μm
- Repeated Measurement Accuracy: 0.5μm (repeat orientation 30 times)
- Measurement Tolerance: 2μm (slight difference between varying workpieces)
Specifications
- Voltage: 220V
- Pressure: 0.6MPa
- Power: 1-2KW
- Capacity: 30 pieces/min
- Dimension: 1261*1496*1900mm
