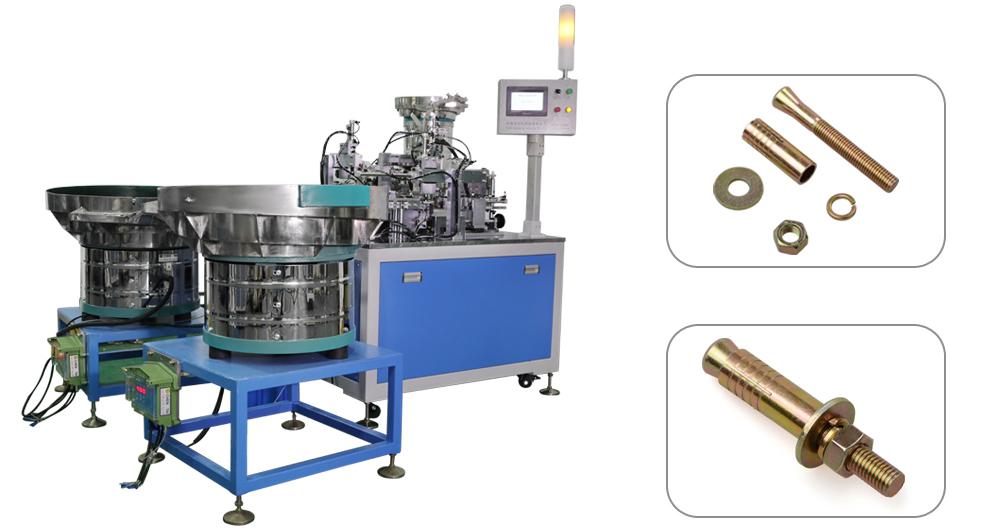

Sleeve Anchor Automatic Assembly Machine

The automated assembly machine is designed for smart assembly of elevator screw bolt and nut.

Main Units

• Vision Inspection System

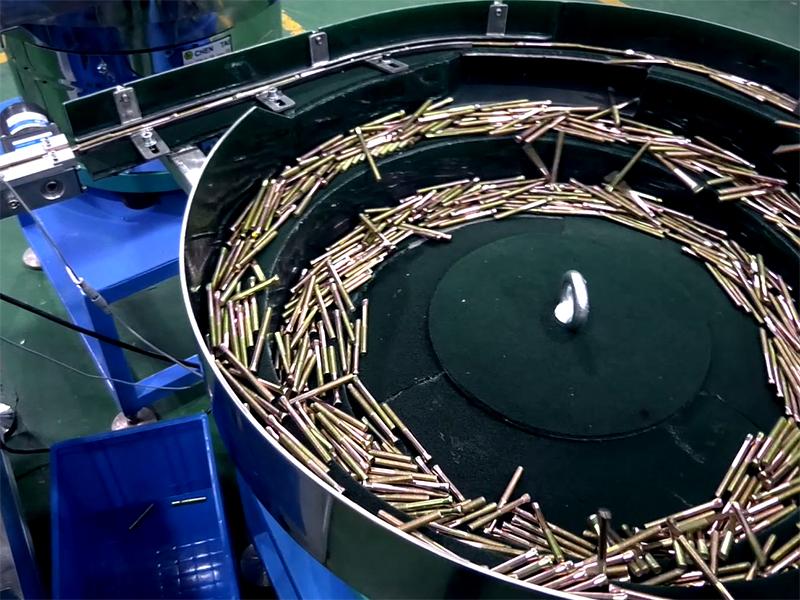

• Bushing Feeder

Specifications

• Capacity: 40 pieces/min
• Voltage: 240V, 50HZ
• Pressure: ≥0.4MPa
• Dimension: (LxWxH) 1.15x1x1.8m

Specifications

• Voltage: 220V
• Pressure: 0.6MPa
• Power: 1-2KW
• Capacity: 30 pieces/min
• Dimension: 1261*1496*1900mm

• Automatic sorting bolt direction function
• 1 or 2 products can be produced at one time
• PLC system can shield the feed channel of the product
• According to the product layer appearance protection requirements, different feeding mechanism levels can be chosen
