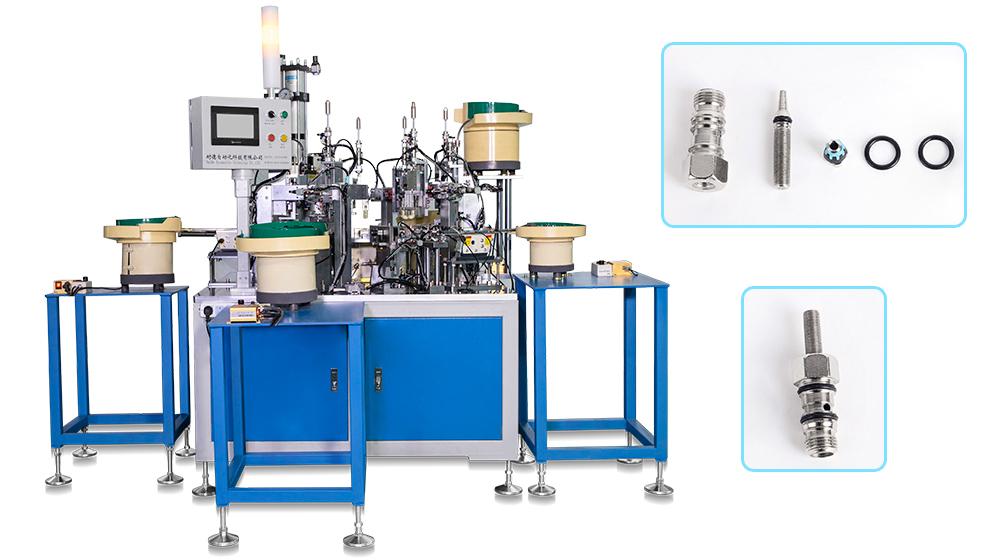

Pneumatic Throttle Valve Automatic Assembly Machine

The automated assembly machine can complete a series of procedures including but not limited to automated feeding, photoelectric detection and pressure cylinder riveting.

• O-ring Feeding System
• Threaded Connection
• Product Riveting Pressure
• Pick and Place System
• Clamping and Flipping Mechanism

• Voltage: 210-240V 5A 50HZ
• Pressure: 0.4-0.6MPa
• Dimension: 500*800*2000mm
• Capacity: 1000-1200 pieces/h
• Power: 1-2KW

Feature

• High stability and easy to separate small and viscous seals with mechanical structures
• The deep fastening mechanism can precisely determine the locking position, ensuring the product quality pass rate
• The combination of hydraulic pressure and air pressure produces more than 3 tons of pressing force
• The heavy-duty pressing device is designed outside the main control structure to avoid the displacement of the main structure

Please contact us for more details and video information.
