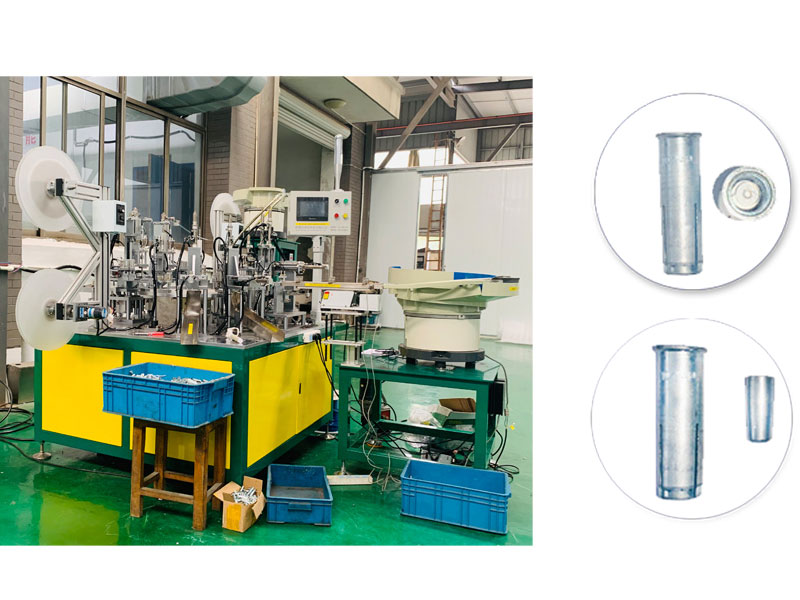

Drop-in Anchor Automatic Assembly Machine

Specifications

• Working Speed: 3720-3900 pcs/h
• Size: 1200 x 1300 mm, 750 x 750 mm, 360 x 360 mm
• Voltage: 210~240 V, 5 A, 50 Hz
• Pressure: 0.4-0.6 MPa
• Power: 1~2 kW

Feature

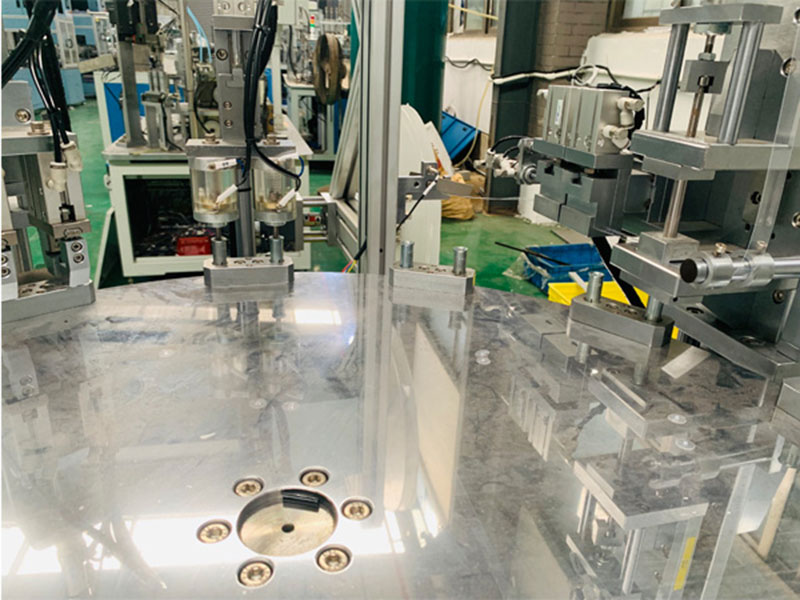

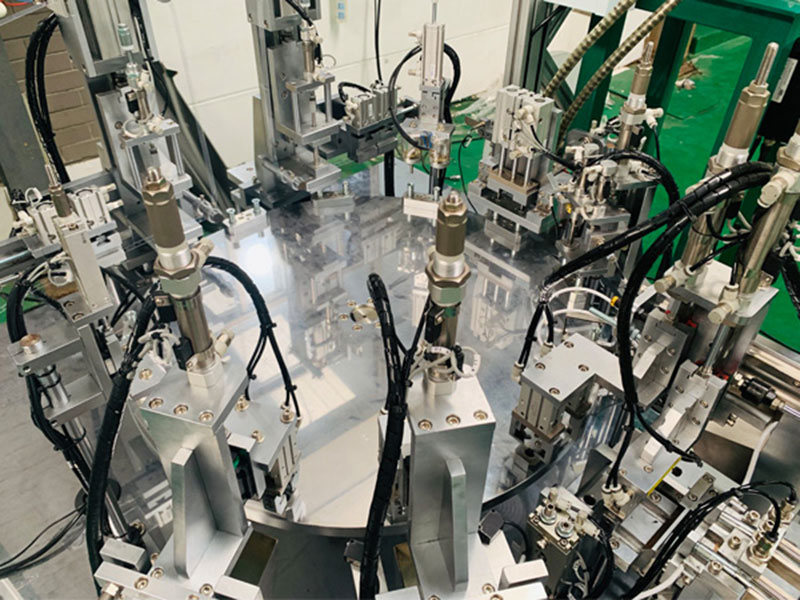

• With dual-channel output, the main working speed of drop-in anchor assembly machine is 62-65 pcs/min, which improves the production efficiency, moreover, saves labor costs. In addition, the factory space can be greatly saved due to its turntable structure assembly method.
• A full set of testing stations ensures a high rate of product qualification, such as spring dowel pin presence/absence inspection, spring dowel pin direction inspection, dowel pin presence/absence inspection, dowel pin direction inspection, and pipe fitting inspection.
• The pipe cap fitting is done by punching to ensure that the dowel pin will not fall out of the spring dowel pin. Also, the qualified and unqualified products are automatically separated.
• Both the spring dowel pin and the dowel pin vibrating plate have the function of adjusting the direction automatically.
